Product Details

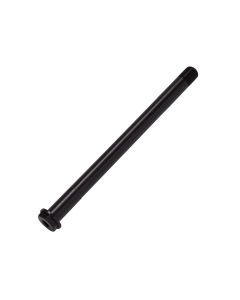

Application: Paragon Machine Works 1-3/4" OD round, rear titanium SRAM UDH/T-Type dropout DR0072 and DR0073
- Although this skewer will work with all our SRAM/T-Type dropouts/inserts IT IS INTENDED FOR USE WITH DR0072 AND DR0073 TO ACCOMMODATE FOR THE WIDER FLANGE WIDTH
Material: Black anodized 6061 aluminum
Function:
- By pulling the handle away from the skewer, the handle can easily be rotated to any of 22 positions; this allows for positioning the handle anywhere that is convenient, and for clearance of other components such as brakes or racks
- The 5 mm hex opposite the handle can be used to tighten the skewer more than what can be done with the handle alone. In the rare event that the handle fails, this hexagon can also be used to remove the skewer
- A handle design that is easier to pull, particularly with gloves on
- A spline that is integral to the skewer
Thread: M12 x 1 x 12
Nominal length (identified by width of hub): See individual product
Actual length (from under skewer head to end of skewer): See individual product
Internal Hexagon: 5 mm internal
Skewers:
- Check drawings for measurements before ordering
- Skewers are available at a 23% discount with the purchase of a compatible dropout: one skewer discount per insert, discount taken in cart.
- Skewer and dropout compatibility is only guaranteed when used with a compatible Paragon Machine Works product.
- We are not able to advise or make recommendations on compatibility with products that are not manufactured by us.
- Sorry, no returns on skewers.

Item sold individually.

SRAM UDH/T-Type
