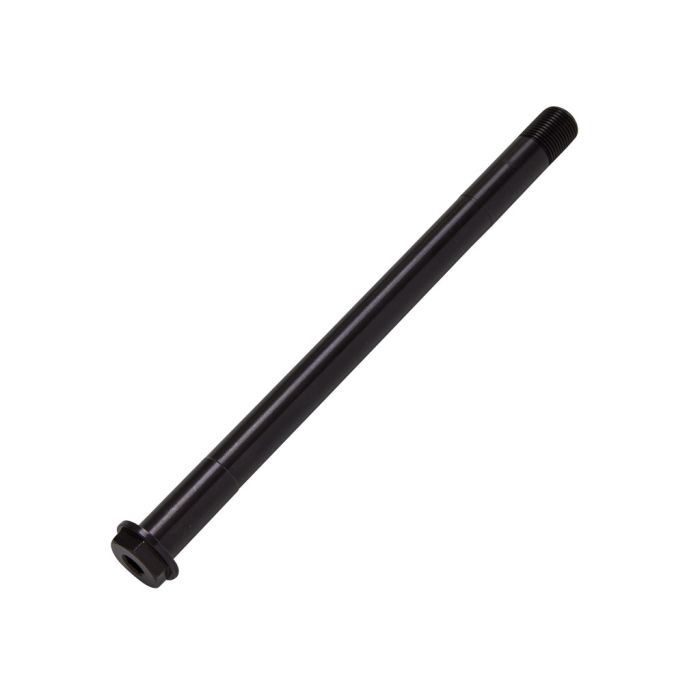

SK4115: SRAM Full Mount/UDH 157 x M12 x 1 Rear Combo Head Skewer

Product Details

• Application:
  • Paragon Machine Works SRAM Full Mount/UDH dropouts/inserts
  • Compatible with our 15 mm wrench bottle opener, BT0002
• Material: Black anodized 6061 aluminum
• Thread: M12 x 1 x 12
• Nominal length (identified by width of hub): 157 mm
• Actual length (from under skewer head to end of skewer): 182 mm
• Combination Head Hexagon: 15 mm external, 6 mm internal
• Thread End Hexagon: 5 mm internal
• Brass Split Ring Washer: Included, installed on the inside face of the skewer to reduce galling, see Skewer FAQ page for more information
• Torque Spec: 8-12 N-m
• Skewers:
  • Check drawings for measurements before ordering
  • Skewers are available at a 25% discount with the purchase of a compatible dropout, See Related Products; one skewer discount per insert, discount taken in cart.
  • Skewer and dropout compatibility is only guaranteed when used with a compatible Paragon Machine Works product.
  • We are not able to advise or make recommendations on compatibility with products that are not manufactured by us.
  • Sorry, no returns on skewers.

Item sold individually.
