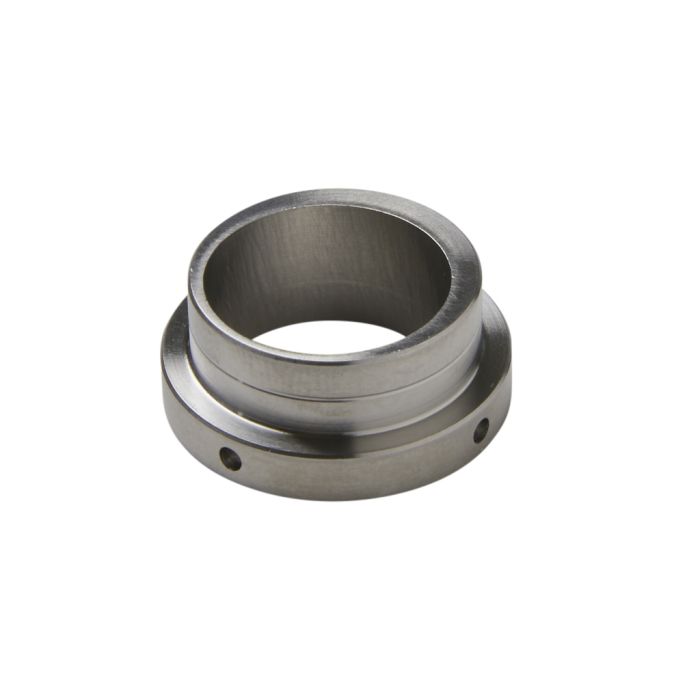

MS1083: Eccentric 1.0 mm Stainless Bushing, SRAM Full Mount/UDH Eccentric Dropout

Product Details

• Material: 303 stainless steel (identified by a dot on the smaller OD collar)
• Style: Eccentric, 1.0 mm

  • Four 2.2 mm radial holes on the flange
  • Single identification groove on the 24 mm diameter
  • Use a 2 mm hex key to rotate the insert, using the radial holes on the flange
• Application:
  • Fits into the right frame component of our stainless steel SRAM Full Mount/UDH eccentric round, rear dropouts (see Related Products below)
  • Allows for fine tuning wheel alignment in the frame following frame construction
  • The bushing:
    • Must be silver soldered in
    • Once installed, is not meant to be consumer serviced
    • Is a structural part of the assembly

Item sold individually.
