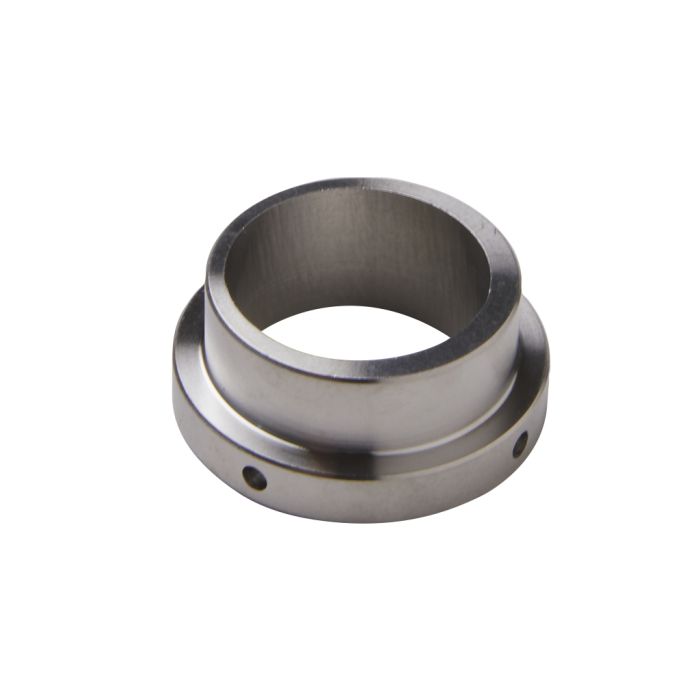

MS1082: Eccentric 0.5 mm Stainless Bushing, SRAM Full Mount/UDH Eccentric Dropout

Product Details

• Material: 303 stainless steel (identified by a dot on the smaller OD collar)
• Style: Eccentric, 0.5 mm
  • Four 2.2 mm radial holes on the flange
  • Use a 2 mm or 5/64" hex key to rotate the insert, using the radial holes on the flange
• Application:
  • Fits into the right frame component of our stainless steel SRAM full mount/UDH eccentric rear dropouts (see Related Products below)
  • Allows for fine tuning wheel alignment in the frame following frame construction
  • The bushing:
    • Must be silver soldered in
    • Once installed, is not meant to be consumer serviced
    • Is a structural part of the assembly

Item sold individually.
