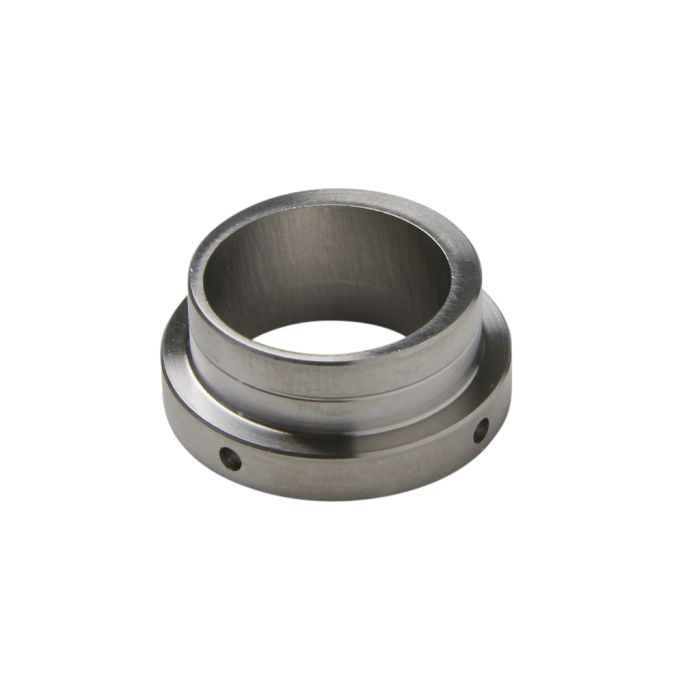

MS0083: Eccentric 1.0 mm Titanium Bushing, SRAM Full Mount/UDH Eccentric Dropout

Product Details

• Material: 6/4 titanium
• Style: Eccentric, 1.0 mm

  • Four 2.2 mm radial holes on the flange
  • Single identification groove on the 24 mm diameter
  • Use a 2 mm key to rotate the insert, using the radial holes on the flange
• Application:
  • Fits the right side of our titanium SRAM Full Mount/UDH eccentric round, rear dropouts
  • Allows for fine tuning wheel alignment in the frame following frame construction
  • The bushing:
    • Must be welded in
    • Once installed, is not meant to be consumer serviced
    • Is a structural part of the assembly

Item sold individually.
