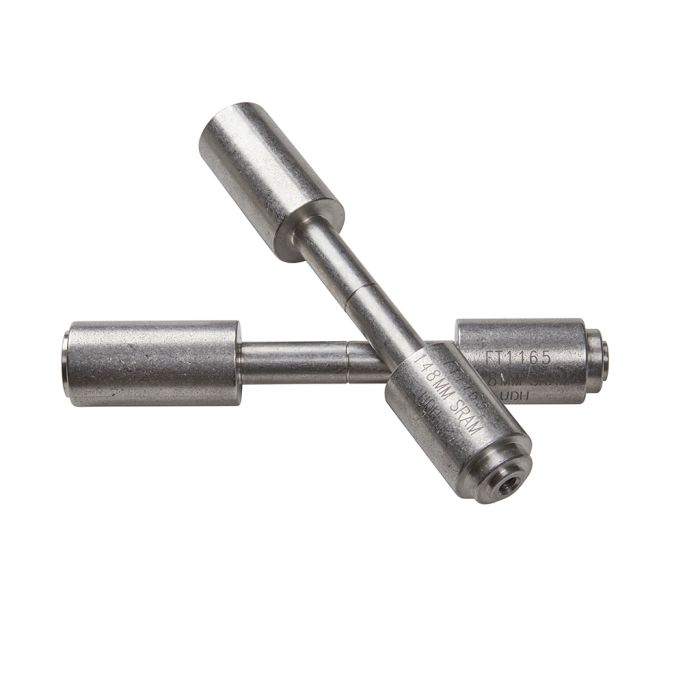

FT1165: SRAM Full Mount/UDH M12 x 148 Exact Rear Spacer

Product Details

NOTE:  IF YOU ALREADY HAVE A PMW 12 MM REAR SPACER , IT CAN BE USED FOR PMW'S FULL MOUNT/UDH DROPOUTS WITH THE ADDITION OF OUR ADAPTER, FT1173, AVAILABLE FOR PURCHASE FROM RELATED PRODUCTS BELOW.

• Application:  Rear Spacer
  • Allows the dropouts to rotate around the center of the axle
• Tooling Compatibility:
  • All Anvil frame jigs and brake tools
  • Other tools that use a 1/2” OD x 2-1/2” long center section dummy axle
• Material:  303 stainless steel
• Nominal OD:  1.125"
• Reduced Center:  .500" diameter x 2.500" wide
• Width: On-size, "Exact"
  • Spacing Between Faces:  148 mm
  • Hub Spacing:  148 mm
• Axle Size:  12 mm
• Hardware Included:
  • 1 each 3/4" OD washer
  • 1 each 7/8" OD washer
  • 1 each M6 x 20 SHCS
  • 1 each M6 x 35 SHCS
• Compatibility:  SRAM Full Mount/UDH rear dropouts/inserts

Sold as five piece assembly.
