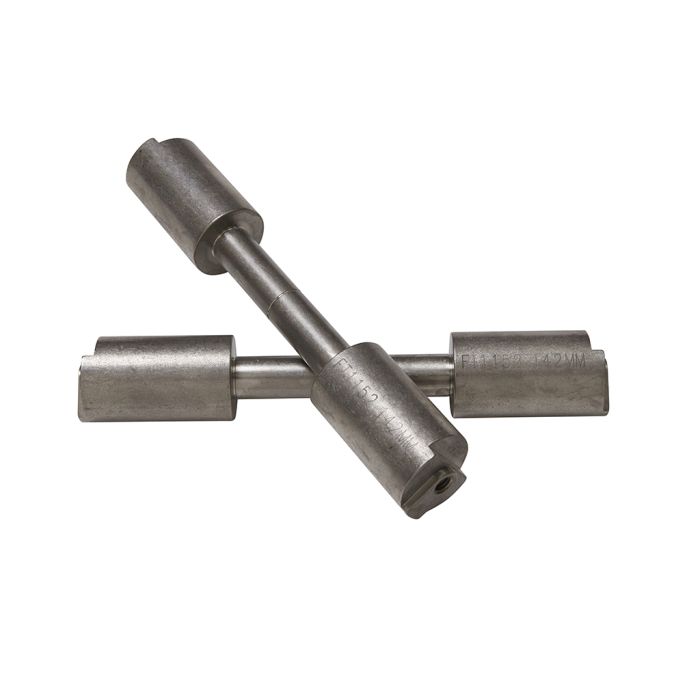

FT1152: M9 x 142 Conventional Sliding Dropout Rear Indexer

$74.95
10 In stock
SKU
FT1152

Comaptible with all Anvil frame jigs

Product Details

  • Application: Rear indexer, Conventional Sliding Dropouts (9 mm)
    • Indexes (fixes) the dropout using the hub slot on the dropouts
  • Tooling Compatibility:
    • All Anvil frame jigs
    • Other tools that use a 1/2” OD x 2-1/2” long center section dummy axle
  • Nominal OD:  1.000"
  • Reduced Center:  .500" diameter x 2.500" width
  • Width: Oversize
    • Spacing Between Faces:  150 mm
    • Hub Spacing:  142 mm
  • Axle Size:  N/A
  • Compatibility:  Paragon Machine Works rear 9 mm sliding dropouts

Item sold as five piece assembly; includes two washers and two M6 x 20 SHCS.

More Information
SKU FT1152
Weight/Grams 399
Alloy/Material 303 Stainless
Select Size FT1152: M9 x 142
PDF Drawing FT1152
STEP File (right click, "save as") FT1152
