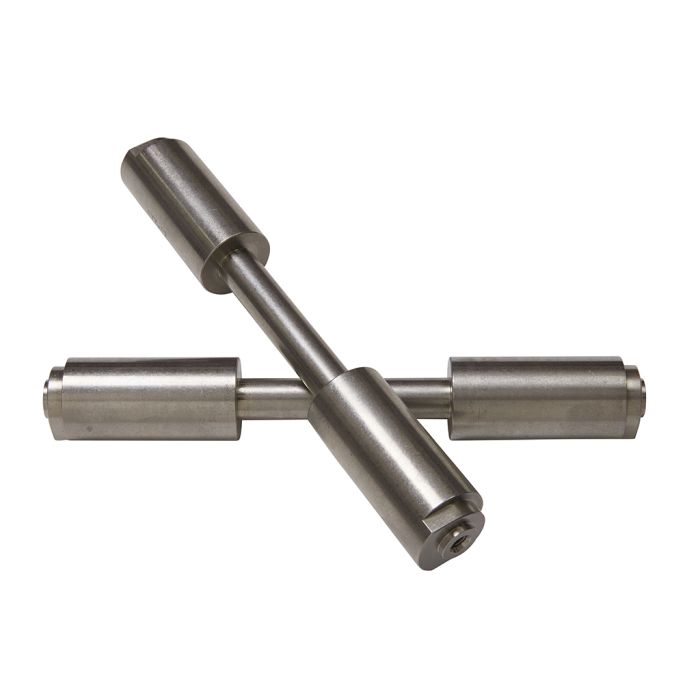

FT1149: M12 x 20 x 177 Exact Rear Indexer

Product Details

• Application: Rear indexer
  • Indexes (fixes) the dropout using the hub slot on the dropouts
• Tooling Compatibility:
  • All Anvil frame jigs
  • Other tools that use a 1/2” OD x 2-1/2” long center section dummy axle
• Nominal OD:  1.000"
• Reduced Center:  .500" diameter x 2.500" width
• Width: On-size, "Exact"
  • Spacing Between Faces:  177 mm
  • Hub Spacing:  177 mm
• Axle Size:  12 mm
• Compatibility:
• Paragon Machine Works or other 12 mm dropouts with 20 mm relief

Item sold as five piece assembly; includes two washers and two M6 x 20 SHCS.
