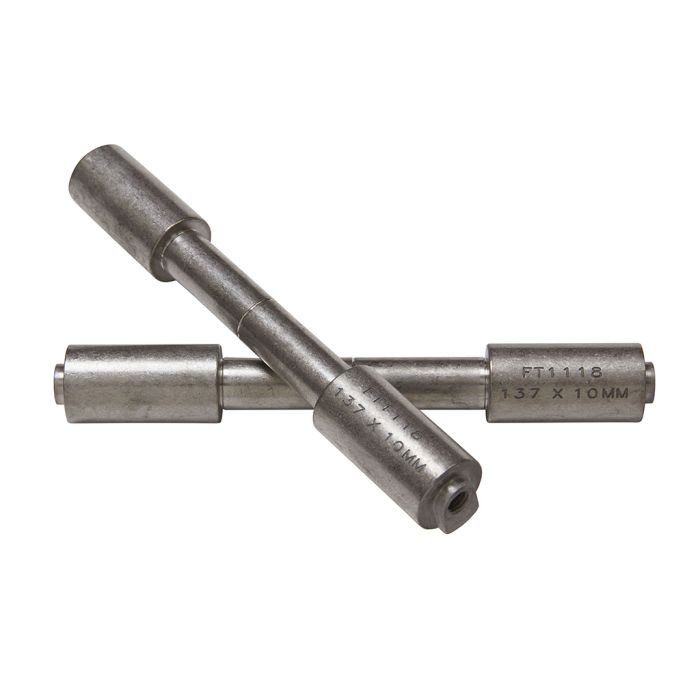

FT1118: M10 x 135 Rear Indexer

Product Details

• Application:  Rear Indexer
  • Indexes (fixes) the dropout using the hub slot on the dropouts
• Tooling Compatibility:
  • All Anvil frame jigs and brake tools
  • Other tools that use a 1/2” OD x 2-1/2” long center section dummy axle
• Material:  303 stainless steel
• Nominal OD:  .750"
• Reduced Center:  .500" diameter x 2.500" wide
• Width: 2 mm oversize to help compensate for distortion after welding
  • Spacing Between Faces:  137 mm
  • Hub Spacing:  135 mm
• Axle Size:  10 mm
• Compatibility:  Any 10 mm rear dropout

Sold as five piece assembly; includes two washers and two M6 x 20 SHCS.
