DS1090: Stainless Steel Full Thickness, Rocker Dropout, No Eyelets

Product Details

• Material: 17/4 stainless steel
• Application: Rocker Dropout assembly
• Frame Components:

  • 6 mm thick
  • Total sliding adjustment = 0.680"
  • Vertical Adjustment = .030" (.76 mm)
• Eyelets: No
• Hardware (included):
  • Four each M8 x 1.25 x 16 steel button head cap screws
  • Four each 2 mm thick single washer
• Inserts: Order right and left inserts separately here
• Skewers: Available at a 23% off with the purchase of a compatible right side insert
• Useful Information:

  • Click here for information about adjustable dropouts
  • Screw torque values
• Related Products:
  • Titanium combination or button head screw upgrades are available at a 25% discount with the purchase of the frame components. See Related Products on this page; one bolt discount/dropout, discount taken in cart.
  • For a rocker dropout tensioner option click here. Note: this is not a Paragon Machine Works products, for product issues/questions contact PDX TI directly.

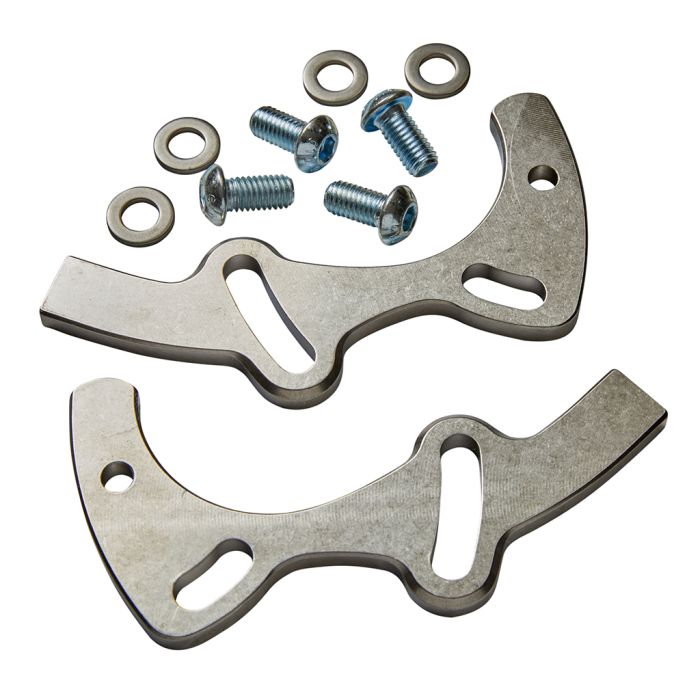

Item includes right and left frame components and steel bolt kit.
