DS1005BD: Stainless Steel Dedicated 12 mm Flat Sliding Dropout, No Eyelets, Hole

Product Details

• Material: 17/4 stainless steel
• Application: Dedicated 12 mm Flat Sliding Dropout assembly
• Function:
  • The skewer assists in maintaining the position of the inserts in the frame components, making it more robust and stable
  • The inserts are kept in place by use of a keyway, washer, and capscrew that help to minimize slippage
• Frame Components:
  • Flat
  • 5 mm thick at the chainstay and seatstay tabs
  • Right side has an 8 mm hole properly located to accommodate a seatstay kit for a belt drive option (see Related Products below)
  • Total sliding adjustment = 0.63"
• Hardware (included):

  • two each M8 x 1.25 x 16 steel button head cap screws
  • two each M5 x 0.8 x 35 socket head cap screws
  • two each 2 mm thick single washers
  • two each M4 keeper screws
  • two each M5 thumb nuts
  • two each M5 hexagon locknuts
  • one unthreaded left side washer
  • one threaded right side washer
• Inserts: Purchase right and left inserts separately here
• Skewers: Available at a 25% off with the purchase of a compatible right side insert
• Useful Information: See our FAQ page
• Related Products:
  • Titanium combination or button head screw upgrades are available at a 25% discount with the purchase of the frame components; see Related Products below. One bolt discount/dropout, discount taken in cart.
  • See Related Products below for belt drive kits.

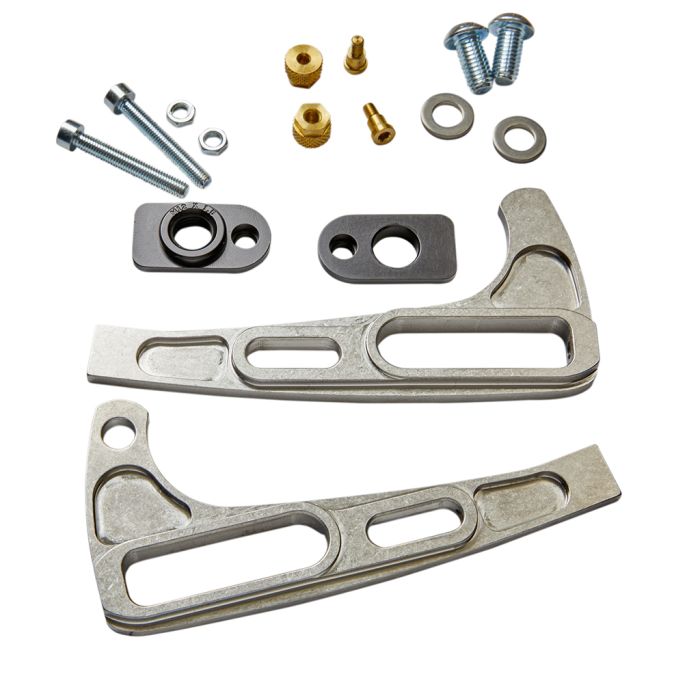

Item includes right and left frame components and steel bolt kit.
