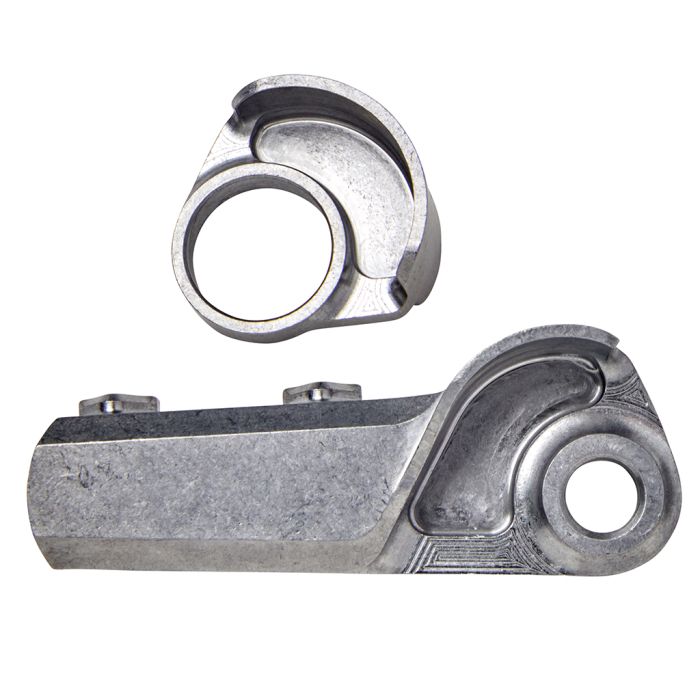

DR2075: Steel SRAM Full Mount/UDH Round, Rear Dropout, Eccentric, Integrated 160/180 Flat Mount

Product Details

• Material: 1018 steel, includes right and left frame components
  • CUSTOM ENGRAVE (see photo) your company name or logo on the left side frame component:

    • One time $65 programming and set up fee
    • $5/pair engraving charge
      • BUY 10+ PAIR AND SET UP/ENGRAVING ARE FREE!
    • Engraving must be done during the manufacturing process, order in advance
    • Email orders(at)paragonmachineworks.com for more information
• Application:
  • SRAM Full Mount derailleurs and Universal Derailleur Hanger
  • Meets all SRAM specs
• OD: 1-3/4"
• Flanges:
  • Width: 1.180"
  • Symmetric: Side-to-side chainstay and seatstay
  • There is approximately 3 mm per side to make the weld with 7/8" chainstays
  • There is approximately 5.5 mm per side to make the weld with 3/4" seatstays
  • Push the seatstay outboard as far as possible to avoid SRAM's clearance mask
• Caliper Mount: Flat Mount Integrated for 160 mm rotor (direct) or 180 mm (with adapter, adapter not included)
• Wheel Alignment:

  • Concentric: use a 0 mm offset bushing
  • Eccentric:
    • Select a 0.5 or 1.0 mm offset bushing
    • For 0.5 or 1.0 mm bushings use a 2 mm hex key to rotate the insert using the radial holes on the flange
  • The bushing is a structural part of the assembly and must be welded in
    • Once installed it is not meant to be consumer serviced
  • The chainstay center MUST be 3.5 mm above axle center to meet SRAM's specs
  • Use the flats on the bottom of the dropout to index:

    • Put a straight edge on the flat and postition it 13 mm +/- 3 mm below bottom bracket center
• Purchase Separately:

  • Hanger: SRAM Universal Derailleur hanger
    • Skewer hole is threaded M12 x1
  • Skewer:

    • Available at a 25% discount with the purchase of a compatible dropout
    • Skewer and dropout compatibility are only guaranteed when used with a compatible Paragon Machine Works product
    • Sorry, no returns on skewers. Please check skewer drawings for measurements before ordering
• Note: We are not able to advise or make recommendations on compatibility with products that are not manufactured by us

Item sold as pair.
