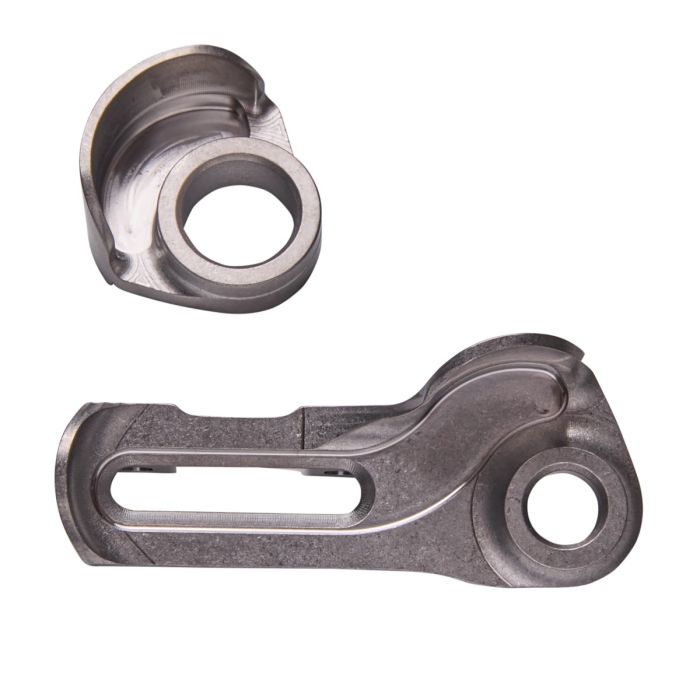

DR0078: Titanium SRAM Full Mount/UDH Round, Rear Dropout, Fixed, Integrated 140/160 Flat Mount

$299.95

Out of stock

SKU

DR0078

Skewers are available for purchase at a 25% discount with the purchase of a compatible dropout (see details and Related Products below).

This item does not require a bushing.

Product Details

Material: 6/4 titanium, includes right and left frame components
Application:
- SRAM Full Mount derailleurs and Universal Derailleur Hanger
- Meets all SRAM specs
OD: 1-3/4"
Flanges:
- Width: 1.180"
- Symmetric seatstay flanges
- There is approximately 3 mm per side to make the weld with 7/8" chainstays and 3/4" seatstays
- Weld the tubes as far outboard as possible to avoid SRAM's clearance mask
Caliper Mount: Flat mount integrated for 140 mm rotor (direct) or 160 mm (with adapter, adapter not included)
- Caliper mount thickness: 10 mm
Purchase Separately:
- Hanger: SRAM Universal Derailleur hanger
  - Skewer hole is threaded M12 x1
- Skewer:
  - Available at a 25% discount with the purchase of a compatible dropout
  - Skewer and dropout compatibility are only guaranteed when used with a compatible Paragon Machine Works product
  - Sorry, no returns on skewers. Please check skewer drawings for measurements before ordering
Note: We are not able to advise or make recommendations on compatibility with products that are not manufactured by us

Item sold as pair.
