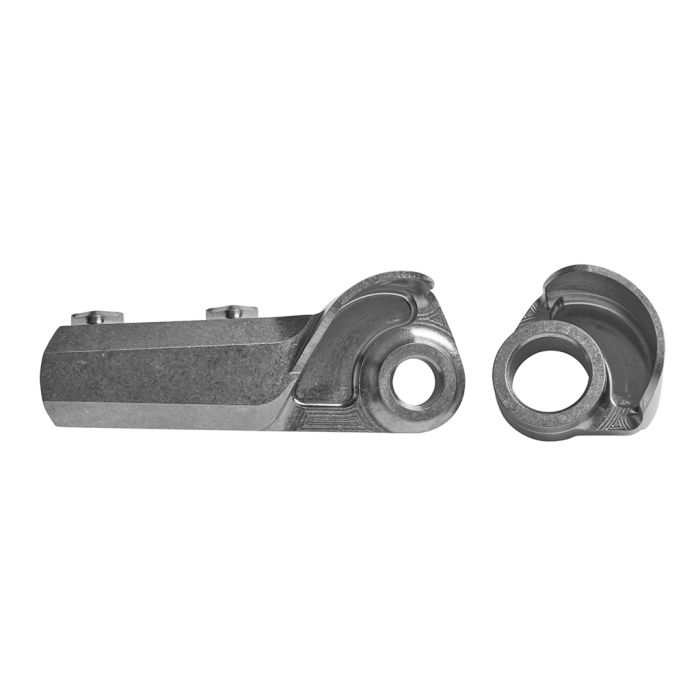

DR0074: Titanium SRAM Full Mount/UDH Rear Dropout, Fixed, Integrated 160/180 Flat Mount

Product Details

• Material: 6/4 titanium, includes right and left frame components
  • CUSTOM ENGRAVE your company name or logo on the left side frame component:

    • One time $65 programming and set up fee
    • $5/pair engraving charge
      • BUY 10+ PAIR AND SET UP/ENGRAVING ARE FREE!
    • Engraving must be done during the manufacturing process, order in advance
    • Email orders(at)paragonmachineworks.com for more information
• Application:
  • SRAM Full Mount derailleurs and Universal Derailleur Hangers
    • Meets all SRAM specs
• OD: 1-3/4"
• Flanges:
  • Width: 1.180"
  • Symmetric: Side-to-side chainstay and seatstay
  • There is approximately 3 mm per side to make the weld with 7/8" chainstays
  • There is approximately 5.5 mm per side to make the weld with 3/4" seatstays
  • Push the seatstay outboard as far as possible to avoid SRAM's clearance mask
• Caliper Mount: Flat Mount Integrated for 160 mm rotor (direct) or 180 mm (with adapter, adapter not included)
• Wheel Alignment:

  • Fixed
  • The chainstay center MUST be 3.5 mm above axle center to meet SRAM's specs
  • Use the flats on the bottom of the dropout to index:

    • Put a straight edge on the flat and postition it 13 mm +/- 3 mm below bottom bracket center
• Purchase Separately:

  • Hanger: SRAM Universal Derailleur hanger
    • Skewer hole is threaded M12 x1
  • Skewer:

    • Available at a 25% discount with the purchase of a compatible dropout
    • Skewer and dropout compatibility are only guaranteed when used with a compatible Paragon Machine Works product
    • Sorry, no returns on skewers. Please check skewer drawings for measurements before ordering
• Note: We are not able to advise or make recommendations on compatibility with products that are not manufactured by us

Item sold as pair.

Awesome purple flat mount brake courtesy of Paul Components

Awesome frame building pictures courtesty of Caletti Cycles
