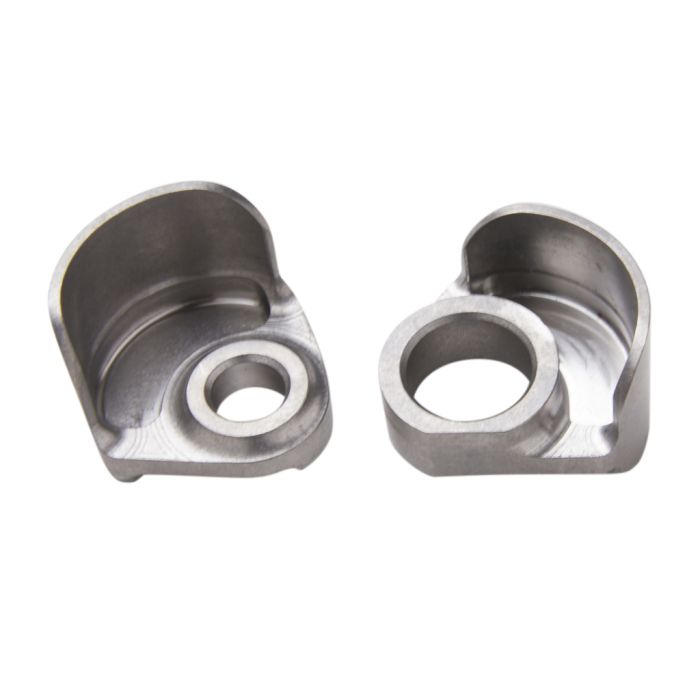

DR0072: Titanium SRAM Full Mount/UDH Round, Rear Dropout, Fixed

Product Details

• Material: 6/4 titanium, includes right and left frame components
• Application:
  • SRAM Full Mount derailleurs and Universal Derailleur Hanger
    • Meets all SRAM specs
• OD: 1-3/4"
• Flanges:
  • Width: 1.180"
  • Symmetric: Side-to-side chainstay and seatstay
  • Place the stays outboard as far as possible to avoid SRAM's clearance mask
• Wheel Alignment:

  • Fixed
  • Use the flats on the bottom of the dropout to index
• Purchase Separately:
  • Hanger: SRAM Universal Derailleur hanger
    • Skewer hole is threaded M12 x1
  • Skewer:

    • Available at a 25% discount with the purchase of a compatible dropout
    • Skewer and dropout compatibility are only guaranteed when used with a compatible Paragon Machine Works product
    • Sorry, no returns on skewers. Please check skewer drawings for measurements before ordering
  • Caliper Mount:
    • Flat:
      • Due to dropout geometry, it is recommended to weld the bosses for 160 flat mount direct. Select one of the following mounting options:


        • Use two 5/8" OD individual caliper mounts, BK0030 or
        • Use one 5/8" OD individual caliper mount, BK0030, and one 3/4" OD individual caliper mount, BK0035 (install near dropout)
    • ISO: Select miter or no miter
    • Post: Select miter or no miter
• Note: We are not able to advise or make recommendations on compatibility with products that are not manufactured by us

Item sold as pair.
