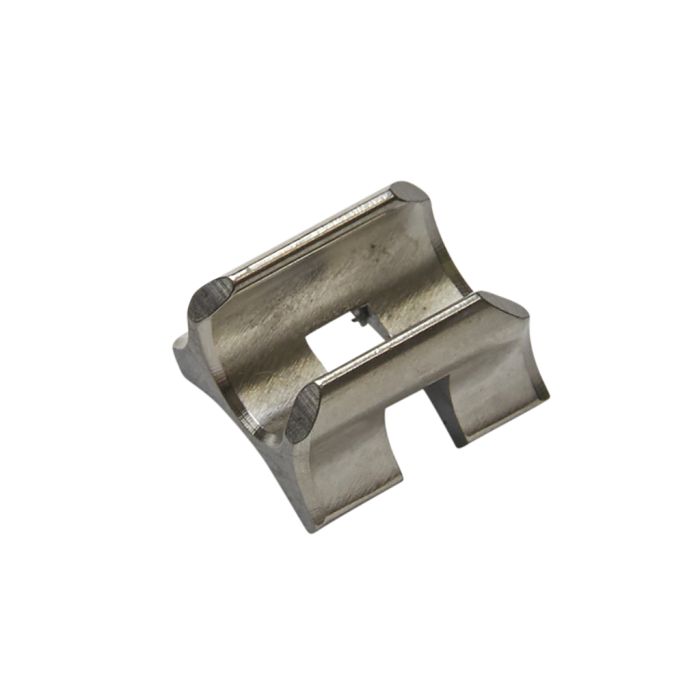

CS2022: Steel Single Zip-Tie, 1 to 1-1/2 in Miter

$2.95
50+ In stock
SKU
CS2022
Manufactured in Richmond, California, USA

Product Details

  • Material: A36, 1018, or 4130 steel
  • Application:
    • Allows disc brake hydraulic hose or full-length housing to be attached to the frame with a zip-tie
    • Four ears form the miter and are meant to be fusion welded to the tube, eliminating the need for any filler material
  • Length: 12 mm
  • Slots: 5/32" between the ears to allow for a small zip-tie and clearance for paint or powder coating; please note: thick paint or powder coat may clog the zip-tie slot.
  • Miter: Mitered to fit all main triangle tubes 1" to 1-1/2"

Item sold individually.

More Information
SKU CS2022
Weight/Grams 1
Alloy/Material 1018 Steel
Miter CS2022: 1 to 1-1/2 in
PDF Drawing CS2022
STEP File (right click, "save as") CS2022
