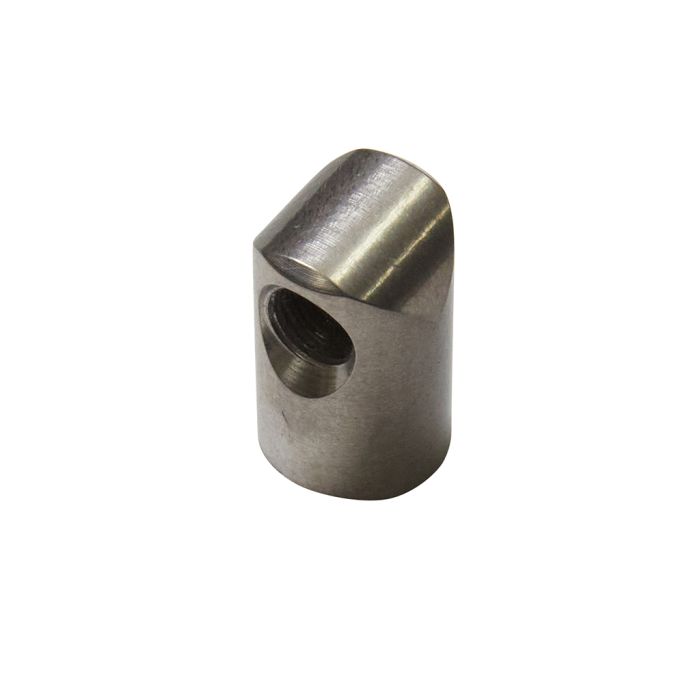

CS0019: Titanium Downtube Barrel Adjuster

Product Details

• Material: CP or 6/4 titanium
• Application:
  • Downtubes and headtubes
  • Use on seattubes to allow an in-line barrel adjuster on the frame for front derailleurs
  • Use on chainstays to allow an in-line barrel adjuster on the stay for rear derailleurs
  • Cable centerline to tube is 0.413"
• OD: 3/8"
• Length: 0.60"
• Hole: 6 mm x 0.45" deep
• Detent: Adjuster detents fit well on the diameter of the stop, effectively keeping the adjuster from moving
• Miter: 1-3/8", parallel to the cross hole but will fit other tube diameters easily
• Thread: Cross drilled and tapped M5 x .8 thread to accommodate a threaded barrel adjuster (see Related Products below)

Item sold individually.
