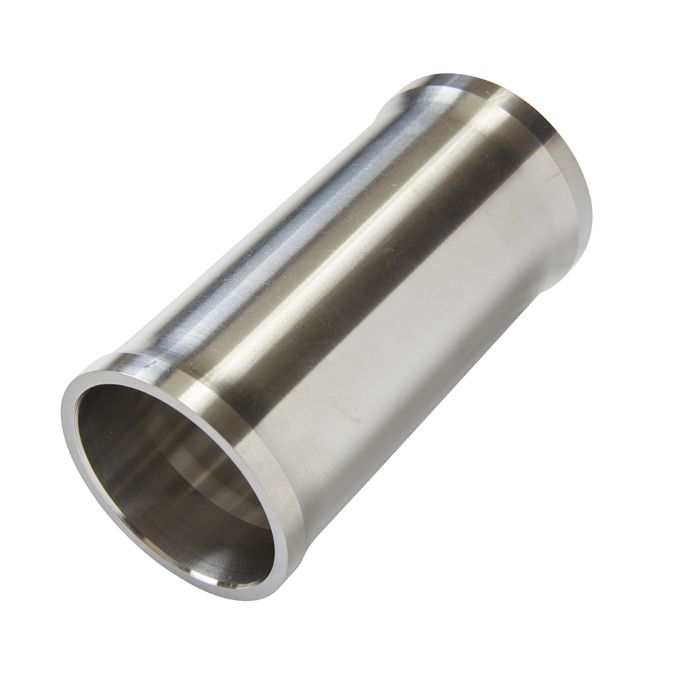

CLHT2007: Steel 44 mm, 115 mm Long, 1-7/8" x 50 mm OD (25% OFF!)

Product Details

COLLAR ID OUT OF SPEC; FINAL SALE.

• Applications:
  • Accepts all 44 mm headset cups
  • Forks with 1-1/8" and 1-1/2" straight and tapered steerers, use appropriate headset
• Material: 2.000" x .156W 4130 steel tubing
• Length: 115 mm +0.25 mm (.010") - 0.5 mm (.020") / -0 to allow for facing after welding
• Relief:
  • ID = 45 mm
  • OD =
    • Center relief is 1-7/8"
    • Ends are 50 mm OD
• Bearing Bores:
  • Supplied .5 mm (.020") undersize to allow for post-weld reaming
  • Must be finished to size by the frame builder

Item sold individually.
