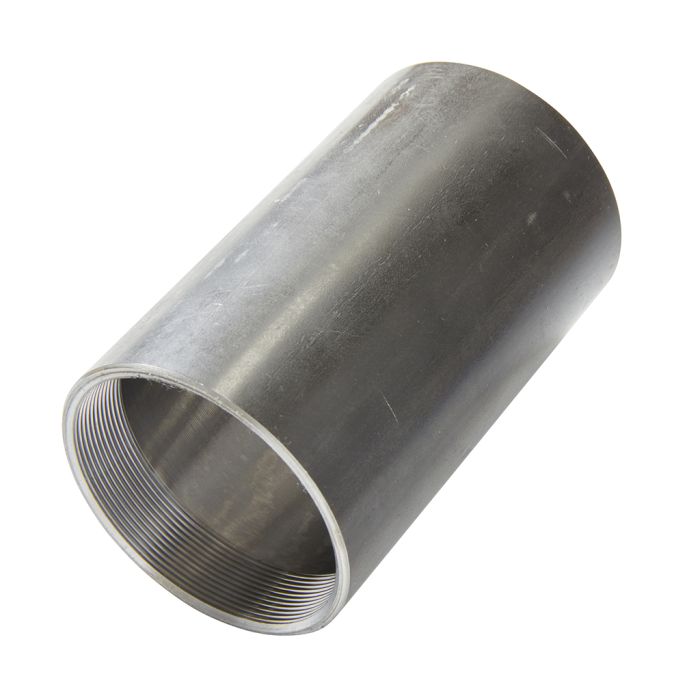

BB2044: Steel T47, 2" OD x 84 mm

Product Details

• Material: 2" OD x .156" wall 4130 or 1026 steel tubing
• OD: 2.000"
• Width: 84 mm, supplied 1.0 mm oversize to allow for clean up after welding
• Relief: On the inside diameter to 47.75 mm +/- 0.1
• Threads:
  • M47 x 1, right and left hand
  • Thread length = 0.50"
  • Left hand thread is identified by a radial groove on the face of the shell
  • Minor diameter = 46 mm +0.1/-0
• Heatsink: FT5005 (see Related Products below)

Item sold individually.
