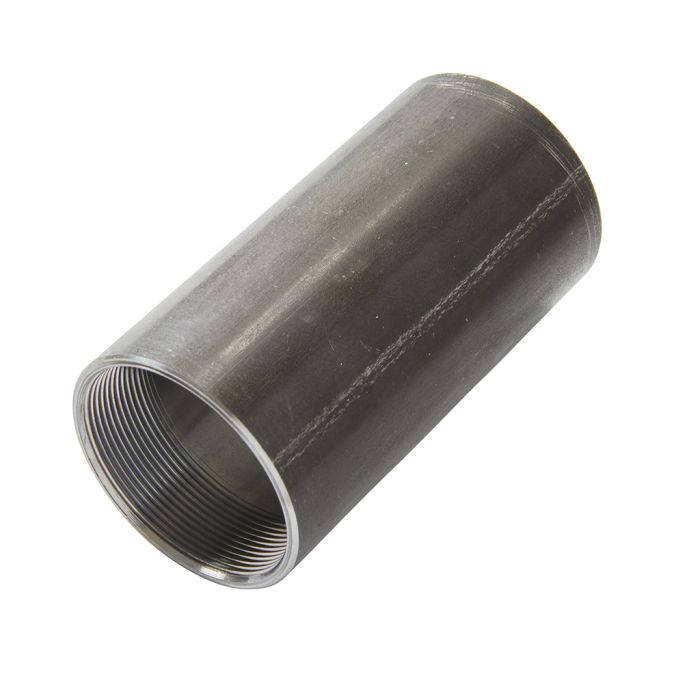

BB2011: Steel Threaded, 1.562" OD x 68.5 mm, Internal Relief

Product Details

• Material: 4130 steel tubing
• OD: 1.562"
• Width: 68.5 mm; 0.5 mm oversize to allow for clean up after welding
• Relief: On the inside diameter to 1.385"/1.395"
• Threads:
  • 1.370"-24, right and left hand
  • Thread length = 0.50"
  • Left hand thread is identified by a radial groove on the face of the shell
  • Minor diameter = 1.330"/1.340"
• Heatsink: See Related Products at the bottom of the individual product page.

Item sold individually.

Photo courtesy of Chris Berkley.
