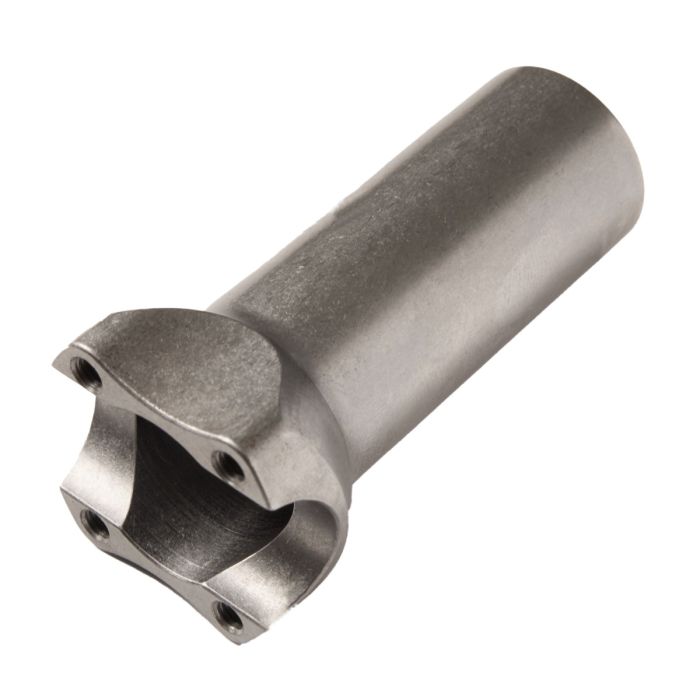

7/8" x 90 mm L Steel Back Stem Plate with Integrated Stem Tube: SP2029

Product Details

• Material: 4130 steel
  • Note: 6/4 titanium integrated stems are available by custom order only; please call or e-mail for details
• Application: Use in conjunction with our 7/8" front stem plate (SP4025) and steel steerer clamp (SP2001), see Related Products below
• Threaded Holes: 4 x M5 x .8 blind threaded holes making for a very smooth, clean profile
• ID: 7/8" (22.22 mm)
• Length:
  • Effective Length: 90 mm
  • Actual Length: 84.13 mm
• Width: 1.600"
• Details:
  • Integrated tube OD/ID: 1.1510" / 1.0313"
  • 0.03" symmetrical gap between faces of front/back stem plates when assembled
  • Nominal length is 5.87 mm shorter than the actual length because the OD of the integrated tube (1.151") is smaller than that of our 1-1/4" stem clamp
    • An “effective length” of 50 mm means that, if mitering coincident to corners of the integrated tube, the effective length will be approximately 50 mm center-to-center from stem clamp to stem plate (see drawings under "More Information" tab for details on this)
  • Entire stem can be contained within a 1.780" diameter circle
  • Longer stem sizes available by custom order; please call or e-mail for details

Item sold individually.
