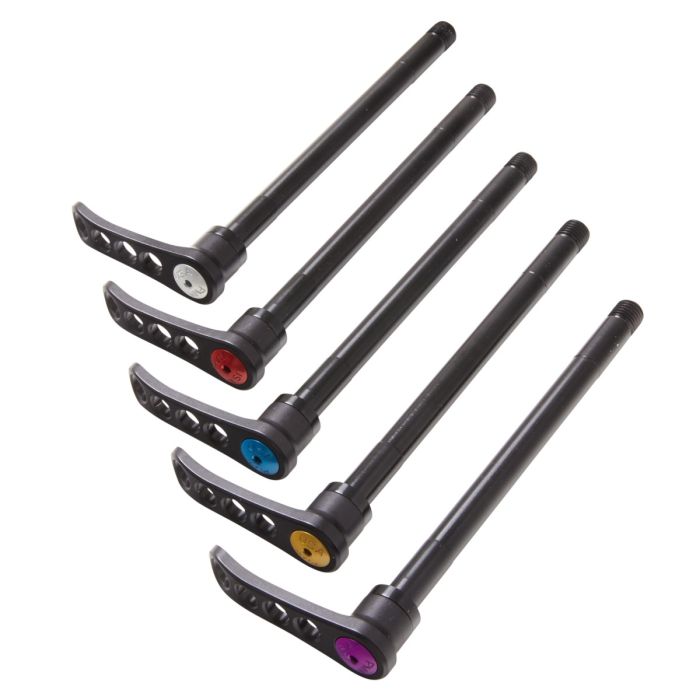

SK4041: 148 x M12 x 1.5 Rear Spline Head Skewer

$41.80
Out of stock
SKU
SK4041
  • Buy 10 for $38.59 each and save 8%
  • Buy 25 for $35.36 each and save 15%
  • Buy 50 for $32.19 each and save 23%

Skewers are available at a 23% discount from Related Products below (discount taken in cart); one skewer discount/insert.

Product Details

  • Application: Paragon Machine Works rear inserts that are threaded M12 x 1.5
  • Material: Black anodized 6061 aluminum
  • Function:
    • By pulling the handle away from the skewer, the handle can easily be rotated to any of 22 positions; this allows for positioning the handle anywhere that is convenient, and for clearance of other components such as brakes or racks
    • The 5 mm hex opposite the handle can be used to tighten the skewer more than what can be done with the handle alone. In the rare event that the handle fails, this hexagon can also be used to remove the skewer
    • A handle design that is easier to pull, particularly with gloves on
    • A spline that is integral to the skewer
  • Thread: M12 x 1.5 x 12
  • Nominal length (identified by width of hub): 148 mm
  • Actual length (from under skewer head to end of skewer): 170 mm
  • Internal Hexagon: 5 mm internal
  • Skewers:
    • Check drawings for measurements before ordering
    • Skewers are available at a 23% discount with the purchase of a compatible right side insert: one skewer discount per insert, discount taken in cart.
    • Skewer and insert compatibility is only guaranteed when used with a compatible Paragon Machine Works product.
    • We are not able to advise or make recommendations on compatibility with products that are not manufactured by us.
    • Sorry, no returns on skewers.

Item sold individually.

More Information
SKU SK4041
Weight/Grams 73
Select Hub Width 148 mm
PDF Drawing SK4041
