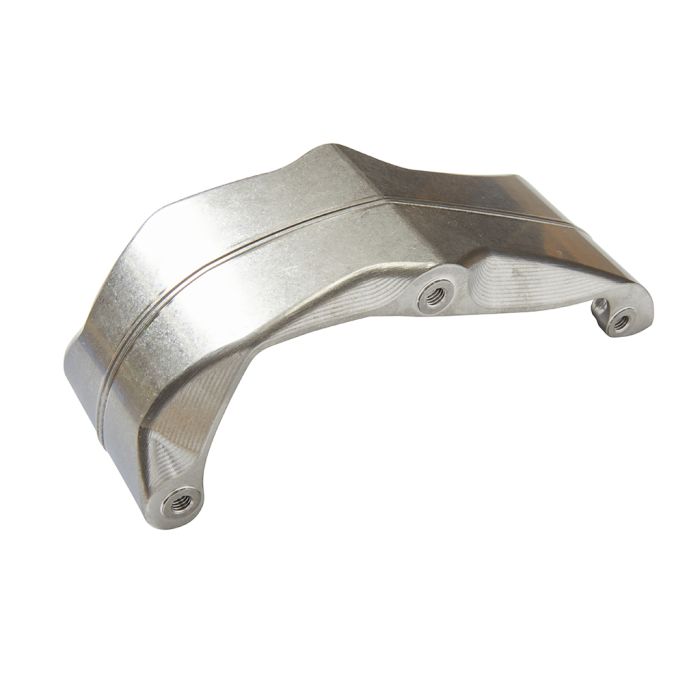

Titanium Bridge for Pinion Gearbox

$350.00
12 In stock
SKU
PP0001
Buy 10+ tube blocks and receive a 10% discount (any combination); discount take in cart

Product Details

  • Material: 6/4 titanium
  • Application:
    • Compatible with the Pinion Gearbox
    • Provides the connection from the Pinion transmission to the frame tubing
  • Features:
    • It is made up of two halves that must be welded together
      • There are 3 x 2 mm pin holes on each half; pin material supplied for alignment of the two halves
  • Specs:
    • The area at the down tube has a 2" radius for mitering
    • The seat tube connection is a plane
    • The radius at the chain stays is 1.00"
    • The bridge is 2-1/2" wide overall and 2.44" at the chainstay connection.
  • Related Products (see below):
    • Bikes with tires up to 2-1/2" can use our yoke, PP0011
    • The Pinion transmission is fastened to the bridge with six M6 cap screws (supplied by Pinion with the gearbox or use our titanium bolts, MS0054

Item sold as 2 piece set.

More Information
SKU PP0001
Weight/Grams 188
Alloy 6/4 Titanium
PDF Drawing PP0001, Bolt Positions
STEP File (right click, "save as") PP0001
