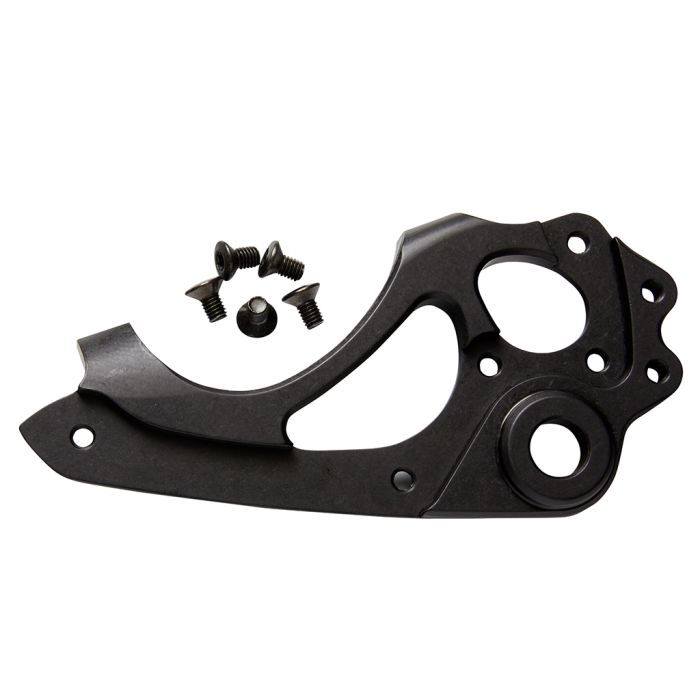

PB410: 12 mm Left Side PolyDrop, Post Mount, 160 Rotor, Eyelets

$47.00
3 In stock
SKU
PB410

Skewers are available at a 23% discount from Related Products below (discount taken in cart)

Product Details

  • Material: Black anodized 6061 aluminum
  • Application:
    • Left (non-drive) side replaceable insert for our 44 degree PolyDrop assembly
    • Post mount for a 160 mm rotor
      • Mount thickness = 25 mm
      • Use 34.3 mm bolts supplied by Shimano
    • Includes five M5 x .8 oval-head cap screws made from black zinc-plated steel
      • Torque specification = 7Nm or 60 inch pounds
      • Make sure that the insert and screws are clean
      • Use Blue Loctite (243) or other equivalent thread locking compound
  • Eyelets: Two M5 x .8
  • Compatibility: We are not able to advise or make recommendations on compatibility with products that are not manufactured by us.

Item sold as 6 piece set.

More Information
SKU PB410
Weight/Grams 75
Insert Type Post Mount
Color/Eyelets Black Eyelets
STEP File (right click, "save as") PB410
PDF Drawing PB410
