MS0023: Titanium CHCS Kit, Conventional Sliding Dropout

Product Details

• Material: 6/4 titanium
• Application:
  • Upgrade or replacement for hardware that has become bent or worn
  • Helps to secure the insert

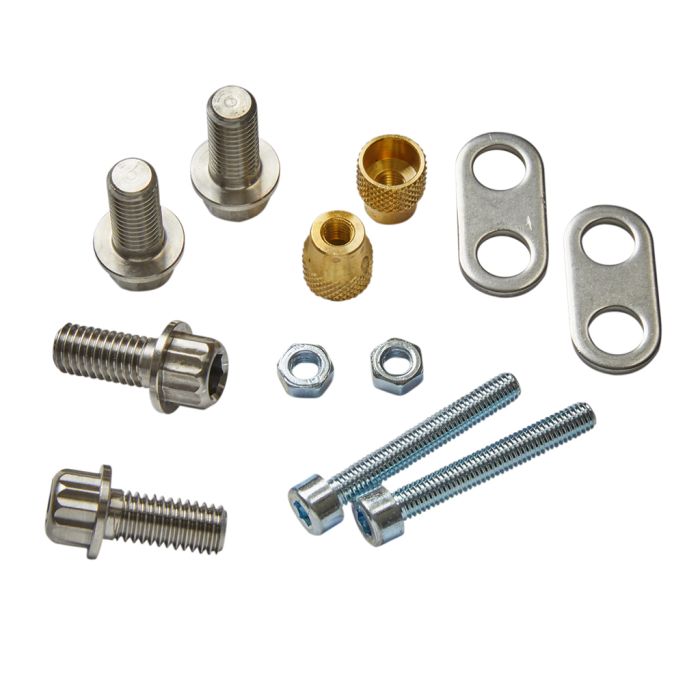

• Components:
  • Four M8 x 1.25 x 18 mm combination head cap screws
    • Screws have a combination head for positive drive:
      • External = 10 mm 12-point drive
      • Internal = 6 mm hexagon
    • Screws are machined to tighter tolerances, are lighter, and can be tightened more than our stock steel screws
  • Two 304 stainless steel 2 mm thick double washers
    • The double washers spread the load from the screws over a larger area, hold the parts together better and keep your frame from getting damaged from repeated tightening and loosening of the screws
  • Two each M5 x 0.8 x 35 socket head cap screws, zinc plated steel
  • Two each M5 brass thumb nuts
  • Two each M5 hexagon lock nuts, zinc plated steel
    • Both the hex nuts and the thumb nuts are meant to be used as lock nuts for the adjuster screw. Typically one or the other is used, not both. Some riders use the adjusting screw bottomed out in the thumb nut, making a larger head for
• Compatibility: PMW Conventional Sliding Dropouts, see Related Products below
• Information:  Click here for recommended torque values.

Item sold as kit.
