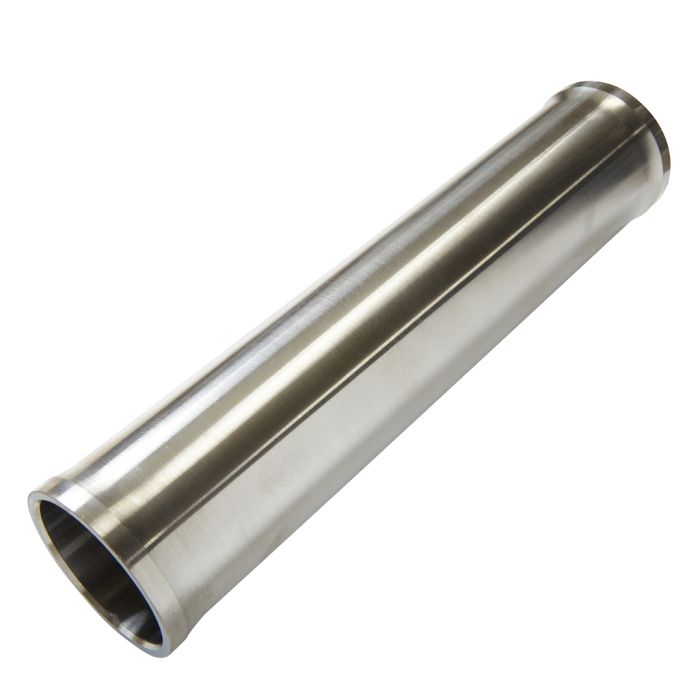

HT2021: Steel 44 mm, 185 mm Long, 1-7/8" x 50 mm OD

$47.55
5 In stock
SKU
HT2021
  • Buy 10 for $43.89 each and save 8%
  • Buy 25 for $40.23 each and save 15%
  • Buy 50 for $36.62 each and save 23%

Skewers are available at a 23% discount with the purchase of this dropout, see Related Products below.

Product Details

  • Applications:
    • Accepts all 44 mm headset cups
    • Forks with 1-1/8" and 1-1/2" straight and tapered steerers, use appropriate headset
  • Material: 2.000" x .156 wall 1026 (indicated by groove on top of one end face) or 4130 steel tubing
  • Length: 185 mm +0.25 mm (.010") - 0.5 mm (.020") / -0 to allow for facing after welding
  • Relief:
    • ID = 45 mm
    • OD =
      • Center relief is 1-7/8"
      • Ends are 50 mm OD
  • Bearing Bores:
    • Supplied .5 mm (.020") undersize to allow for post-weld reaming
    • Must be finished to size by the frame builder

Item sold individually.

More Information
SKU HT2021
Weight/Grams 313
Alloy 4130 Steel
Length 185 mm
PDF Drawing HT2021
STEP File (right click, "save as") HT2021
