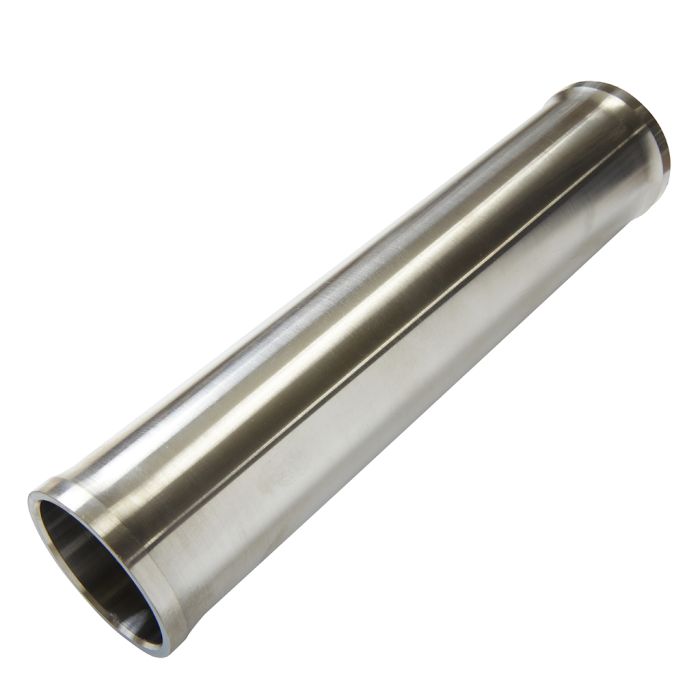

HT0040: Titanium 44 mm, 280 mm Long, 1-7/8" x 50 mm OD

Product Details

• Applications:
  • Accepts all 44 mm headset cups
  • Forks with 1-1/8" and 1-1/2" straight and tapered steerers, use appropriate headset
• Material: 2.000" x .150 wall 3/2.5 titanium tubing
• Length: 280 mm +0.25 mm (.010") - 0.5 mm (.020") / -0 to allow for facing after welding
• Relief:
  • ID = 45 mm
  • OD = Center relief is 1-7/8", ends are 50 mm
• Bearing Bores:
  • Supplied .5 mm (.020") undersize to allow for post-weld reaming
  • Must be finished to size by the frame builder

Item sold individually.
