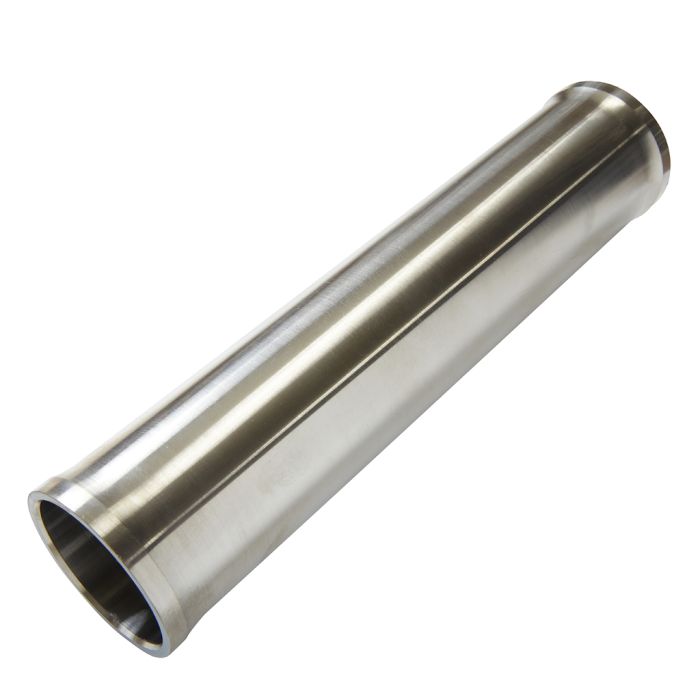

HT0038: Titanium 44 mm, 270 mm Long, 1-7/8" x 50 mm OD

$250.03
3 In stock
SKU
HT0038

Product Details

  • Applications:
    • Accepts all 44 mm headset cups
    • Forks with 1-1/8" and 1-1/2" straight and tapered steerers, use appropriate headset
  • Material: 2.000" x .150 wall 3/2.5 titanium tubing
  • Length: 270 mm +0.25 mm (.010") - 0.5 mm (.020") / -0 to allow for facing after welding
  • Relief:
    • ID = 45 mm
    • OD = Center relief is 1-7/8", ends are 50 mm
  • Bearing Bores:
    • Supplied .5 mm (.020") undersize to allow for post-weld reaming
    • Must be finished to size by the frame builder

Item sold individually.

More Information
SKU HT0038
Weight/Grams 262
Alloy 3/2.5 Titanium
Length 270 mm
PDF Drawing HT0038
STEP File (right click, "save as") HT0038
