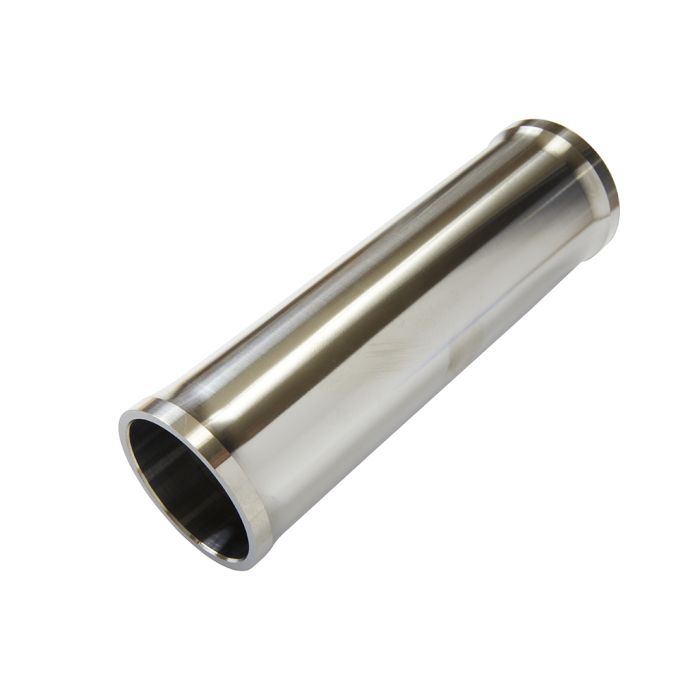

HT0023: Titanium 44 mm, Single, 195 mm, 1-7/8" x 50 mm OD

HT0023: Titanium 44 mm, Single, 195 mm, 1-7/8" x 50 mm OD

9 In stock

  • Buy 10 for $131.63 each and save 8%
  • Buy 25 for $120.64 each and save 16%
  • Buy 50 for $109.81 each and save 23%


This headtube accepts all 44 mm headset cups. It is made from 3/2.5 titanium tubing and is relieved inside and out. By using different headsets, this headtube can use forks with 1-1/8" and 1-1/2" straight and tapered steerers.

  1. The bearing bores are supplied .5 mm (.020") undersize to allow for post-weld reaming, and must be finished to size by the frame builder.
  2. The inside relief is 45 mm diameter.
  3. Both ends of the headtube are 50 mm outside diameter.
  4. The center relief on the outside is 1-7/8" diameter.
  5. The length is 195 mm with a tolerance of +0.25 mm (.010") - 0.5 mm (.020") / -0 to allow for facing after welding.

Item sold individually.



Item Number HT0023
Weight/Grams 192
Alloy 3/2.5
Length 195 mm
STEP File (right click, "save as") HT0023
PDF Drawing HT0023
