DS0001: Titanium Conventional Flanged Sliding Dropout

$157.30

50+ In stock

SKU

DS0001

Order right and left inserts separately here

Product Details

Material: 6/4 titanium
Application: Flanged Sliding Dropout assembly
Frame Components:
- Flanged
- Chainstay: 1.100" wide by 1.750" diameter
- Seatstay: 1.020" wide by 1.375" diameter
- Total sliding adjustment = 0.800"
Hardware (included):
- Four each M8 x 1.25 x 18 steel button head cap screws
- Two each M5 x 0.8 x 35 socket head cap screws
- Two each 2 mm thick double washers
- Two each M5 brass thumb nuts
- Two each M5 hexagon locknuts
- Both the hex nuts and the thumb nuts are meant to be used as locknuts for the adjuster screw. Typically one or the other is used, not both. Some riders use the adjusting screw bottomed out in the thumb nut, making a larger head for the adjusting screw. If you choose to do this, use the hex nut as a locknut.
Inserts: Order right and left inserts separately here
Skewers: Available at a 23% off with the purchase of a compatible right side insert
Useful Information:
- Click here for information about sliding dropouts
- Screw torque values
Related Products:
- Titanium combination or button head screw upgrades are available at a 25% discount with the purchase of the frame components. See Related Products on this page; one bolt discount/dropout, discount taken in cart.

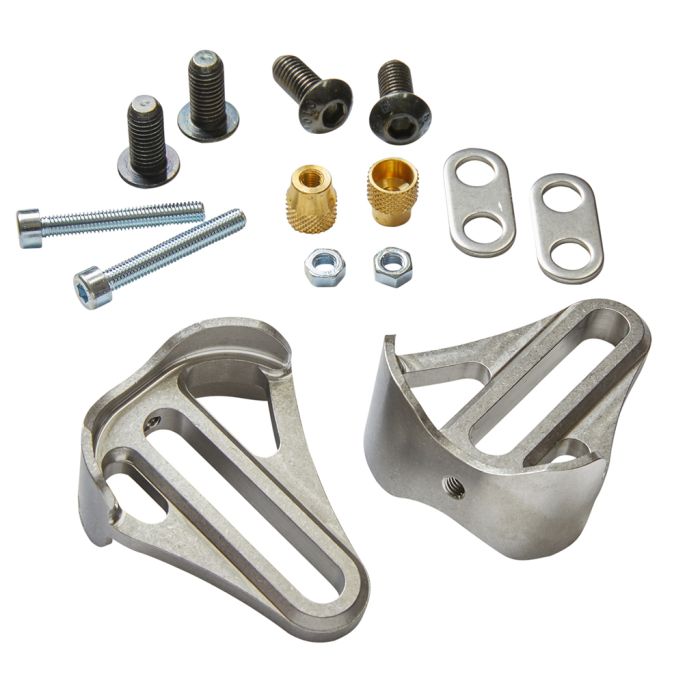

Item includes right and left frame components and steel bolt kit.

Photo courtesy of: Triton Bikes
