DR2085: Steel 12 mm Flat Mount, 58 Degree, No Eyelets
-
Buy 10 for
$70.61
each and save 8%
-
Buy 25 for
$64.71
each and save 15%
-
Buy 50 for
$58.90
each and save 23%
The right side accommodates an insert that can be purchased separately from Related Products below
Product Details

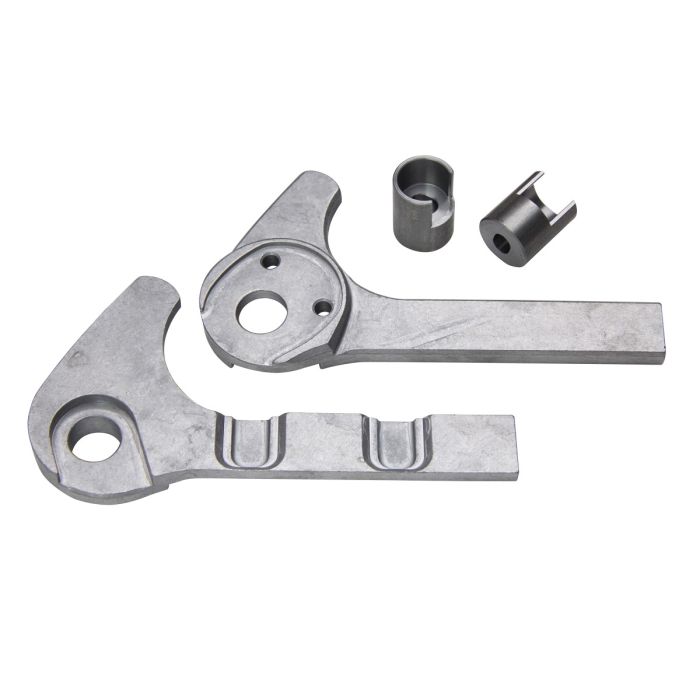

- Material: 1018 steel, four piece assembly includes:
- Right and left frame components with a 12 mm skewer hole:
- The right side accommodates an insert that can be purchased separately from Related Products below
- For information on hanger alignment click here
- Compatible caliper mounts, 2 each:
- OD: 5/8"
- Length: 20.5 mm
- Mounting:
- Mounting thickness at bolt: 10 mm
- 0.5 mm oversized
- Must be faced after welding to meet Shimano's tolerance
- Application: Flat mount brake calipers
- Angle: 58 degrees
- Eyelets: None
- Skewer:
- Available at a 23% discount with the purchase of a compatible insert
- Skewer and insert compatibility are only guaranteed when used with a compatible Paragon Machine Works product
- Sorry, no returns on skewers. Please check skewer drawings for measurements before ordering
Note: We are not able to advise or make recommendations on compatibility with products that are not manufactured by us
Item sold as 4 piece assembly.
More Information
SKU |
DR2085 |
Weight/Grams |
261 |
Select Option |
58 Degrees No Eyelets |
Alloy |
1018 Steel |
STEP File (right click, "save as") |
DR2085 Left, DR2085 Right |
PDF Drawing |
DR2085 BK2037 |
