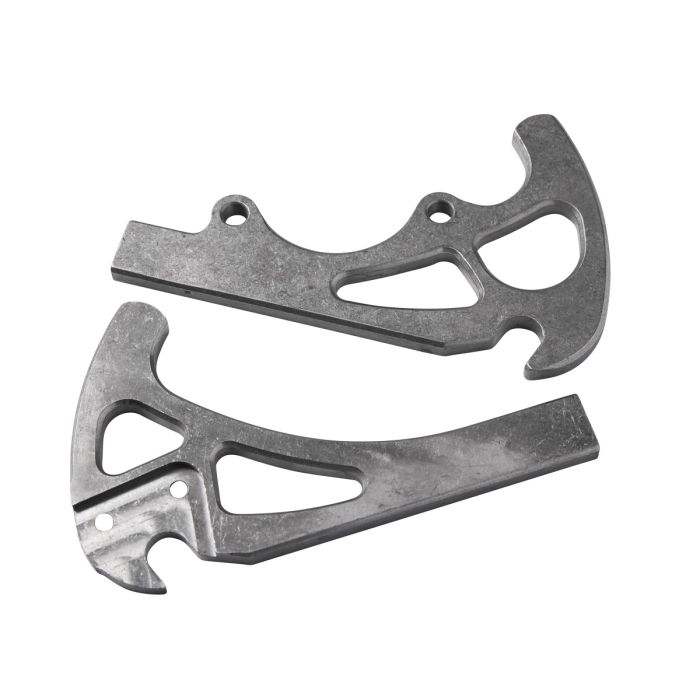

DR2034: Steel 10 mm Low Mount, 48 Degree, No Eyelets

Product Details

• Material: .250" thick 4130 steel
• Application: ISO disc mount
  • Use our 160 mm ISO adapter for a clean, integrated brake mount (see Related Products below)
• Angle: 48 degree
• Frame Components:
  • Right and left frame frame components:
    • Integrated ISO disc mounts located between the stays
    • Relieved on one side
    • Chamfered 45 degrees x 1 mm around the outside profile and window
    • Tabs = 5 mm thick
  • Right right frame component:
    • Accommodates a hanger that can be purchased separately from Related Products below
    • 8 mm thick with the hanger installed
    • For information on hanger alignment click here
    • The arced seatstay tab can be cut by the builder to accommodate angles up to 75 degrees
  • Left frame component:
    • Dropout face and caliper mounting holes are .250" thick
• Eyelets: None

Item sold by pair.

Photo: ISO mount BK4003B shown on build by Mahall Bike Works.
