DR1086: Stainless Steel 12 mm Flat Mount, 70 Degree, No Eyelets

Product Details

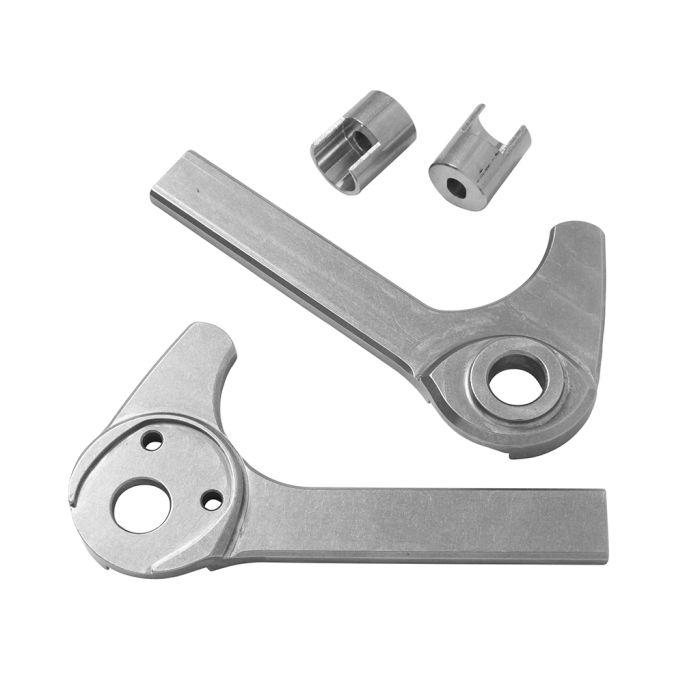

• Material: 4130 steel, four piece assembly includes:
  • Right and left frame components with a 12 mm skewer hole:
    • The right side accommodates an insert that can be purchased separately from Related Products below
    • For information on hanger alignment click here
  • Compatible caliper mounts, 2 each:
    • OD: 5/8"
    • Length: 20.5 mm
    • Mounting:
      • Mounting thickness at bolt: 10 mm
      • 0.5 mm oversized
      • Must be faced after welding to meet Shimano's tolerance
• Application: Flat mount brake calipers
• Angle: 70 degrees
• Eyelets: None
• Skewer:
  • Available at a 23% discount with the purchase of a compatible insert
  • Skewer and insert compatibility are only guaranteed when used with a compatible Paragon Machine Works product
  • Sorry, no returns on skewers. Please check skewer drawings for measurements before ordering

Note: We are not able to advise or make recommendations on compatibility with products that are not manufactured by us

Item sold as 4 piece assembly.
