DR0004: Titanium 1-1/2" OD x 1.040" Rear, 10 mm Hub

DR0004: Titanium 1-1/2" OD x 1.040" Rear, 10 mm Hub

The right side accommodates a hanger that can be purchased separately from here or from the Related Products below.

Out of stock

$53.38
Description

Description

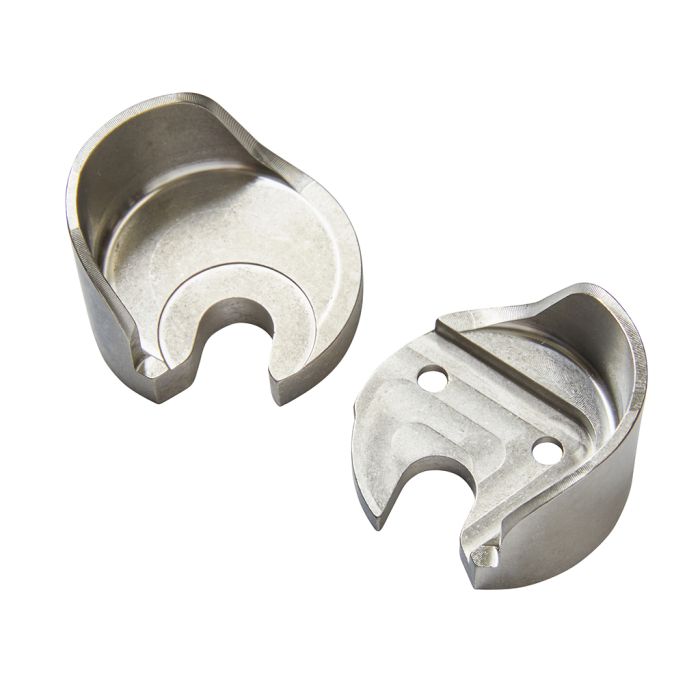

These are the right and left frame components for our 1-1/2" diameter round, rear, Wright-style dropout. They are made from 6/4 titanium and have a flange height of 1.040" and are .276" thick at the axle face.

Important Information

  1. The right side accommodates a derailleur hanger that can be purchased separately here or from the Related Products below.
  2. For information on hanger alignment click here.

Item sold by pair.

Photos courtesy of Triton Bikes.

Features

SPECIFICATIONS

Item Number DR0004
Weight/Grams 60
Material Titanium
Skewer OD 10 mm
Alloy 6/4
STEP File (right click, "save as") 1-1/2" Dropout and Hangers
PDF Drawing 1-1/2" Dropout and Hangers
