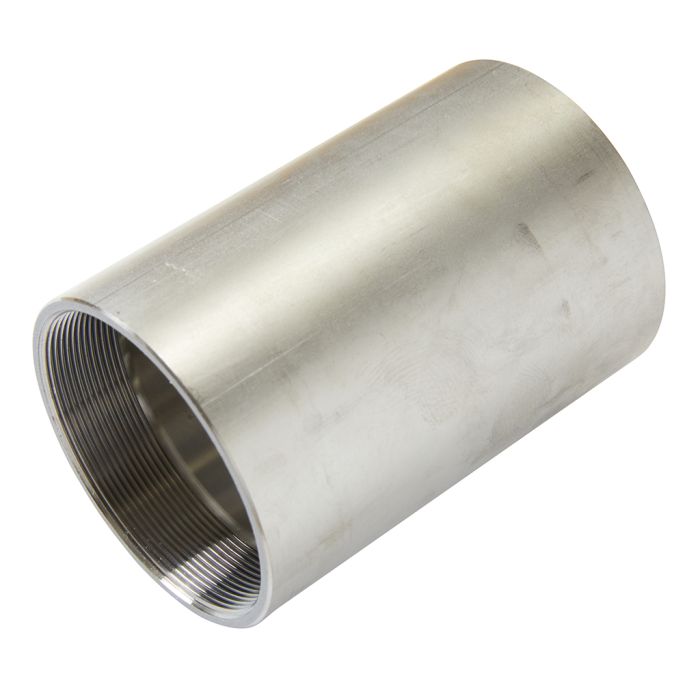

CLBB1040: Stainless Steel T47, 2" OD x 69 mm Wide (40% OFF!)

$50.69
10 In stock
SKU
CLBB1040

Product Details

IMPERFECT THREADS; ALL SALES FINAL

  • Material: 2.000" OD 17/4 stainless steel solid round bar. Due to handling of the material prior to its arrival at our facility, this item may have cosmetic imperfections; in most cases this can be minimized by clever positioning of the bottom bracket shell.
  • OD: 2.000"
  • Width: 69 mm, supplied 1.0 mm oversize to allow for clean up after welding
  • Relief: On the inside diameter to 47.75 mm +/- 0.1
  • Threads:
    • M47 x 1, right and left hand
    • Thread length = 0.50"
    • Left hand thread is identified by a radial groove on the face of the shell
    • Minor diameter = 46 mm +0.1/-0
  • Heatsink: FT5004 (see Related Products on this page)

Item sold individually.

More Information
SKU CLBB1040
Weight/Grams 142
Alloy 17/4 Stainless
Width 69 mm Clearance
PDF Drawing BB1040
STEP File (right click, "save as") BB1040
