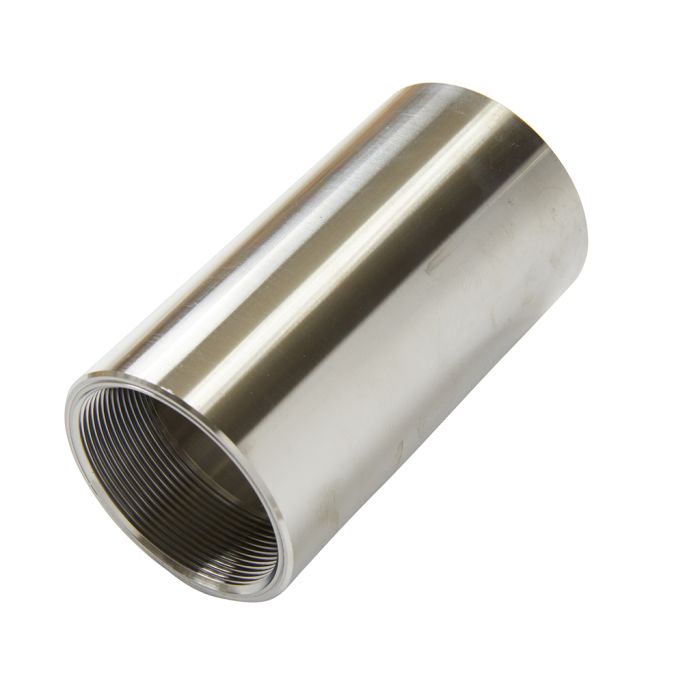

BB1001: Stainless Steel Threaded, 1.500" OD x 68.5 mm

Product Details

• Material: 1-1/2" OD 17/4 stainless steel solid round bar. Due to handling of the material prior to its arrival at our facility, this item may have cosmetic imperfections; in most cases this can be minimized by clever positioning of the bottom bracket shell.
• OD: 1.500"
• Width: 68.5 mm, supplied 0.5 mm oversize to allow for clean up after welding
• Relief: On the inside diameter to 1.385"/1.395"
• Threads:
  • 1.370"-24, right and left hand; compatible with all modern threaded bottom brackets
  • Thread length = 0.50"
  • Left hand thread is identified by a radial groove on the face of the shell
  • Minor diameter = 1.330"/1.340"
• Heatsink: FT5002 (see Related Products below)

Item sold individually.
