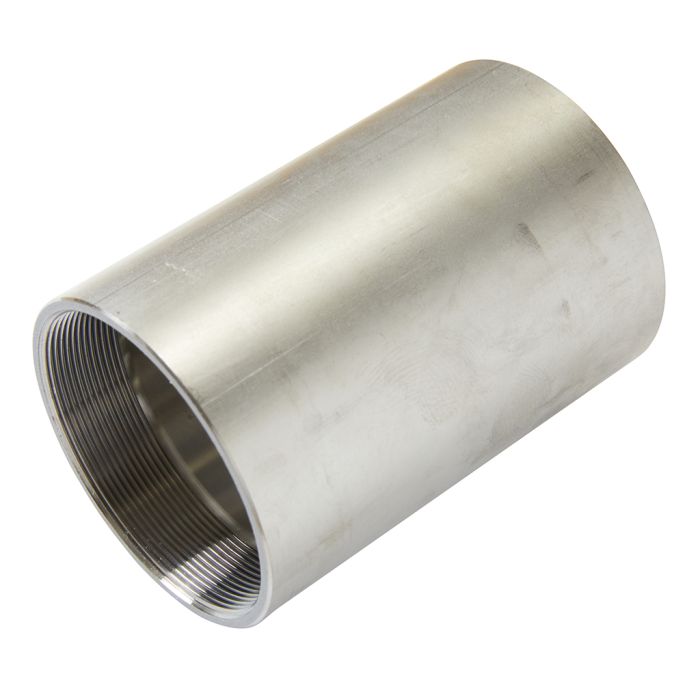

BB0049: 2" OD x 92.5 mm

$88.10
19 In stock
SKU
BB0049
  • Buy 10 for $81.32 each and save 8%
  • Buy 25 for $74.53 each and save 15%
  • Buy 50 for $67.84 each and save 23%

Product Details

  • Material: 2" OD x .150" wall 3/2.5 titanium tubing
  • OD: 2.000"
  • Width: 92.5 mm, supplied 1.0 mm oversize to allow for clean up after welding
  • Relief: On the inside diameter to 47.75 mm +/- 0.1
  • Threads:
    • M47 x 1, right and left hand
    • Thread length = 0.50"
    • Left hand thread is identified by a radial groove on the face of the shell
    • Minor diameter = 46 mm +0.1/-0

Item sold individually.

Photos courtesy of Mosaic Cycles and Kent Eriksen Cycles.

More Information
SKU BB0049
Weight/Grams 111
Alloy 3/2.5 Titanium
Width 92.5 mm
PDF Drawing BB0049
STEP File (right click, "save as") BB0049
