BB0024: Titanium Threaded, 1.625" OD x 73.5 mm

$47.79
16 In stock
SKU
BB0024
  • Buy 10 for $44.12 each and save 8%
  • Buy 25 for $40.43 each and save 15%
  • Buy 50 for $36.80 each and save 23%

Product Details

  • Material: 1-5/8" x .151" wall 3/2.5 titanium tubing
  • OD: 1.625"
  • Width: 73.5 mm, supplied 0.5 mm oversize to allow for clean up after welding
  • Relief: On the inside diameter to 1.385"/1.395"
  • Threads:
    • 1.370"-24, right and left hand; compatible with all modern threaded bottom brackets
    • Thread length = 0.50"
    • Left hand thread is identified by a radial groove on the face of the shell
    • Minor diameter = 1.330"/1.340"
  • Heatsink: FT5002 (see Related Products below)

Item sold individually.

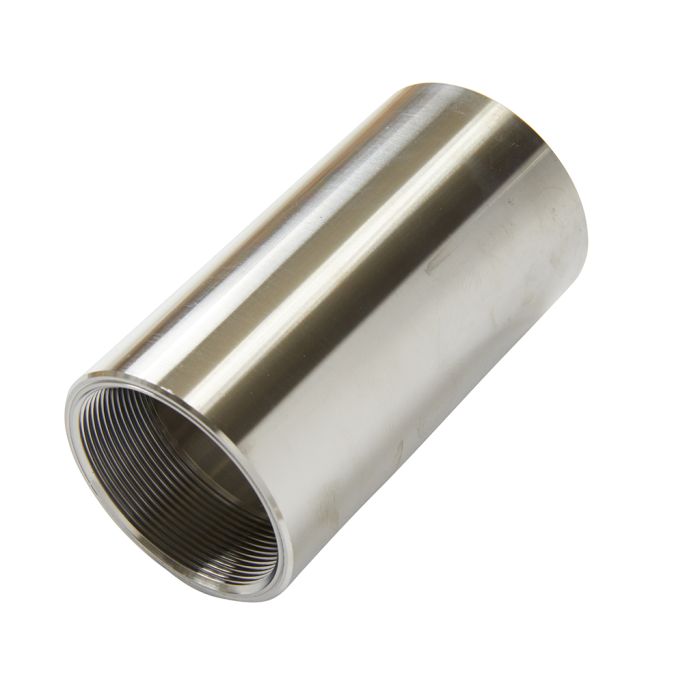

Photo courtesy of Triton Bikes.

More Information
SKU BB0024
Weight/Grams 121
Alloy 3/2.5 Titanium
Width 73.5 mm
PDF Drawing BB0024
STEP File (right click, "save as") BB0024
