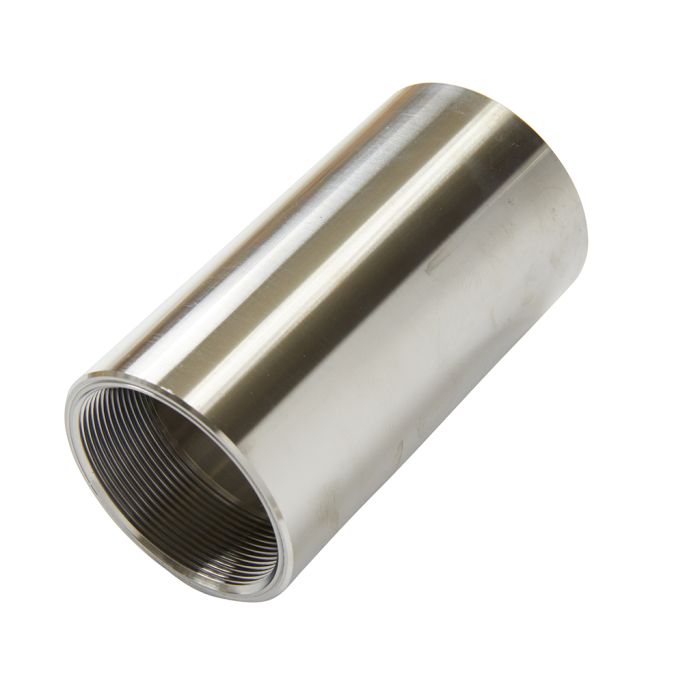

BB0023: Titanium Threaded, 1.625" OD x 68.5 mm

Product Details

• Material: 1-5/8" x .151" wall 3/2.5 titanium tubing
• OD: 1.625"
• Width: 68.5 mm, supplied 0.5 mm oversize to allow for clean up after welding
• Relief: On the inside diameter to 1.385"/1.395"
• Threads:
  • 1.370"-24, right and left hand; compatible with all modern threaded bottom brackets
  • Thread length = 0.50"
  • Left hand thread is identified by a radial groove on the face of the shell
  • Minor diameter = 1.330"/1.340"
• Heatsink: FT5002 (see Related Products below)

Item sold individually.

Photo courtesy of Triton Bikes.
