BB0022: Titanium Threaded, 1.562" OD x 73.5 mm

Product Details

• Material: 1-5/8" x .151" wall 3/2.5 titanium tubing
• OD: 1.562"
• Width: 73.5 mm, supplied 0.5 mm oversize to allow for clean up after welding
• Relief: On the inside diameter to 1.385"/1.395"
• Threads:
  • 1.370"-24, right and left hand; compatible with all modern threaded bottom bracket spindles
  • Thread length = 0.50"
  • Left hand thread is identified by a radial groove on the face of the shell
  • Minor diameter = 1.330"/1.340"
• Heatsink: FT5002, see Related Products below.

Item sold individually.

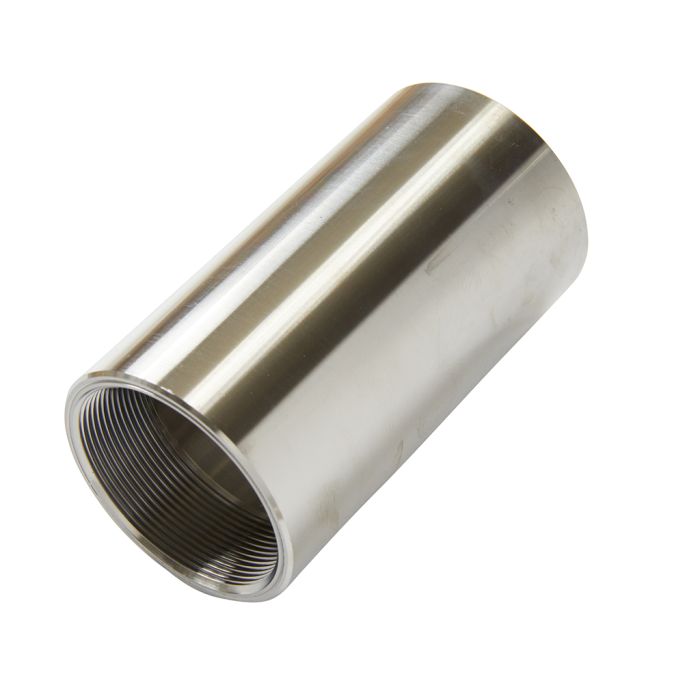

Photo courtesy of Triton Bikes.
