BB0001: Titanium Threaded, 1.500" OD x 68.5 mm

$48.85
28 In stock
SKU
BB0001
  • Buy 10 for $45.09 each and save 8%
  • Buy 25 for $41.33 each and save 15%
  • Buy 50 for $37.62 each and save 23%

Product Details

  • Material: 1-5/8" x .151" wall 3/2.5 titanium tubing.
  • OD: 1.500"
  • Width: 68.5 mm; 0.5 mm oversize to allow for clean up after welding.
  • Relief: On the inside diameter to 1.385"/1.395".
  • Threads:
    • 1.370"-24, right and left hand; compatible with all modern threaded bottom brackets.
    • Thread length = 0.50".
    • Left hand thread is identified by a radial groove on the face of the shell.
    • Minor diameter = 1.330"/1.340".
  • Heatsink: FT5002 (see Related Products below).

Item sold individually.

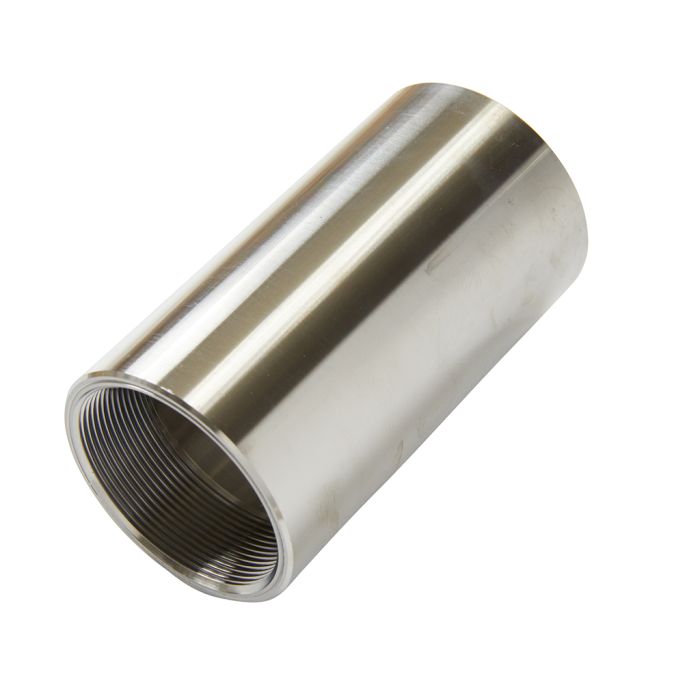

Photo courtesy of Triton Bikes.

More Information
SKU BB0001
Weight/Grams 55
Alloy 3/2.5 Titanium
Width 68.5 mm
PDF Drawing BB0001
STEP File (right click, "save as") BB0001
