B4013: Left Side, Sliding, No ISO Mount, 10 mm

B4013: Left Side, Sliding, No ISO Mount, 10 mm

13 In stock

  • Buy 10 for $13.85 each and save 8%
  • Buy 25 for $12.69 each and save 16%
  • Buy 50 for $11.55 each and save 23%

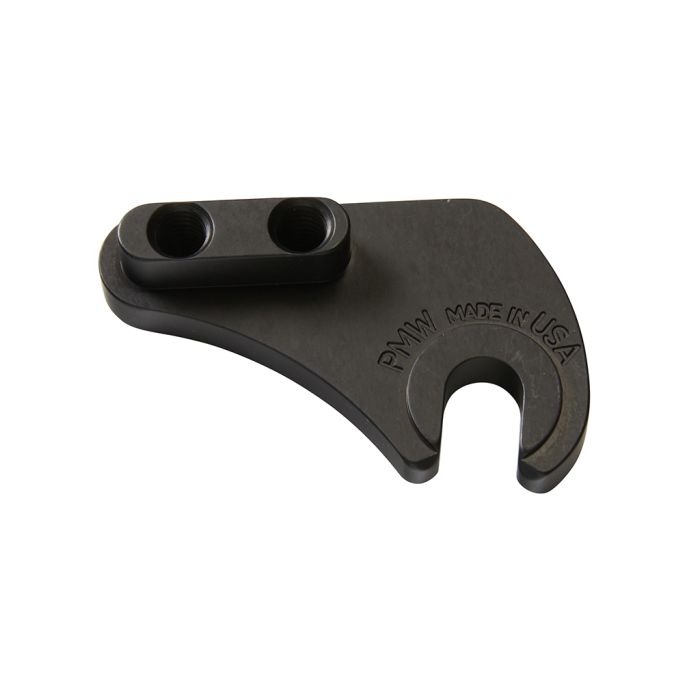

This is the left side (non-drive) replacement insert for all of our flat/flanged sliding dropouts. Made from 6061 aluminum and black anodized, it is compatible with a 10 mm skewer and can be used for any application that doesn't require a disc brake. DR4009 or B4009.

Important Information
  1. For useful information on adjustable dropouts, including torque values for our bolts, click here.
  2. Insert compatibility is only guaranteed when used with a compatible Paragon Machine Works product.
  3. We are not able to advise or make recommendations on compatibility with products that are not manufactured by us.

Item sold individually.



Item Number B4013
Weight/Grams 32
Insert Type No ISO Mount
Skewer OD 10 mm
Plating Black Anodization
STEP File (right click, "save as") Flat, Flanged
PDF Drawing Flat, Flanged
